PyTorch Fundamentals

Level 7 · Chapter 1 · ⏱️ ~70 min read · Prerequisites: A neural network in NumPy, Autograd from scratch, NumPy

In Level 6 you built tensors-with-gradients, layers, and optimizers yourself. PyTorch gives you industrial versions of all three. This chapter maps each piece you built onto its PyTorch counterpart: tensors (dtypes, devices, memory layout, views and copies, broadcasting), autograd (how requires_grad builds a backward graph, why gradients accumulate, and when to use no_grad and detach), nn.Module (how parameters are found and saved), and Dataset and DataLoader (how data reaches the model in batches). You'll also check, to eight decimal places, that PyTorch's gradients match the ones you derive by hand.

Why it matters

Wei ported a working NumPy network to PyTorch over a weekend. The NumPy version reached 97% on handwritten digits. The PyTorch version started well: the loss fell for about thirty steps. Then it rose, oscillated wildly, and settled at chance accuracy. Wei lowered the learning rate, which only delayed the blow-up. Wei tried a different initialization, then a different optimizer, and lost two days.

The bug was one missing line: optimizer.zero_grad(). In Wei's NumPy code, each backward pass assigned fresh gradients to layer.dW. In PyTorch, loss.backward() adds new gradients to whatever is already stored in each parameter's .grad. Without zeroing, step 30 was using the sum of 30 steps' gradients: an effective learning rate thirty times too large, pointing in a stale direction.

PyTorch does this on purpose. Accumulating is what makes gradient accumulation over several small batches possible, and it's how a parameter used twice in one graph gets both contributions. But you only see why if you know how autograd works underneath. Every confusing PyTorch bug (a gradient that is None, a tensor that changed when you modified a different tensor, an "expected all tensors to be on the same device" error, a model that does worse at test time) traces back to one of the mechanisms in this chapter.

Concepts

What PyTorch adds to NumPy

A PyTorch tensor is an n-dimensional array, like a NumPy ndarray. Most of what you know carries over: shapes, dtypes, indexing, slicing, broadcasting, reductions along axes, and matrix multiplication with @. A tensor adds three things:

1. A device. A tensor lives in CPU memory or on an accelerator (an NVIDIA GPU via CUDA, or Apple silicon via MPS). Operations run where the data lives.
2. Automatic differentiation. A tensor can record the operations that produced it, so PyTorch can compute gradients through them. This is the engine you built in Autograd from scratch, generalized to tensors and written in C++.
3. A deep learning library on top. Layers, losses, optimizers, data loading, and serialization, all designed around the first two features.

PyTorch is define-by-run (also called eager execution): the graph of operations is recorded as your Python code runs, line by line. That means ordinary Python control flow (if, for, recursion) works inside models, and you can debug with print and a debugger. Each forward pass builds a new graph, and backward() frees it once it's used.

Tensors: shape, dtype, and type promotion

You create tensors much as you create arrays: torch.tensor(data) copies from a Python list or array, and torch.zeros, torch.ones, torch.arange, torch.linspace, torch.rand (uniform on \([0, 1)\)), and torch.randn (standard normal) create new ones.

The dtype is the element type. The defaults differ from NumPy in one important way: PyTorch's default floating-point type is float32, while NumPy's is float64. Neural networks rarely need more than 32 bits, and halving the memory doubles throughput. The dtypes you'll meet:

dtype	Bits	Used for
torch.float32	32	Parameters, activations, almost everything (the default)
torch.float64	64	Numerical checks, such as gradient checking
torch.float16	16	Mixed-precision training on GPUs (narrow range: max about 65,504)
torch.bfloat16	16	Mixed precision on newer GPUs, TPUs, and CPUs (float32's range, less precision)
torch.int64 (long)	64	Class labels and indices (what cross_entropy and nn.Embedding expect)
torch.uint8	8	Raw image pixels, 0 to 255
torch.bool	8	Masks

When an operation mixes dtypes, PyTorch applies type promotion: an integer tensor plus a float tensor gives a float tensor, and float32 plus float64 gives float64. One exception catches people: a Python scalar doesn't promote a tensor's floating type, so float32_tensor * 2.5 stays float32. Convert explicitly with .float(), .long(), .to(torch.float64), and so on.

Most shape operations have NumPy twins: reshape, T (2-D) and transpose(i, j), permute (reorder all dimensions, NumPy's transpose), unsqueeze(i) (insert a dimension of size 1, like np.expand_dims), squeeze, flatten, cat (join along an existing dimension), and stack (join along a new one). PyTorch tends to say dim where NumPy says axis, but accepts both in most functions.

Memory: storage, strides, views, and copies

A tensor is a view onto a block of memory called its storage. The tensor's shape, stride, and offset describe how to walk that memory. The stride says how many elements to skip to move one step along each dimension. For a contiguous \(3 \times 4\) tensor, the stride is \((4, 1)\): move one row, skip 4 elements; move one column, skip 1. The element at index \((i, j)\) lives at

\[ \text{address}(i, j) = \text{offset} + i \cdot s_0 + j \cdot s_1, \]

where \(s_0, s_1\) are the strides. Many operations just change the shape, stride, or offset without touching the data. These return a view: a new tensor object sharing the same storage. Transposing swaps the strides to \((1, 4)\). Slicing x[:, 1] sets the offset to 1 and the stride to \((4,)\). Views are free, but modifying a view modifies the original, and vice versa.

Operation	View or copy?
Basic slicing x[1:, ::2], x[:, 0]	View
view, transpose, T, permute, unsqueeze, squeeze, expand, narrow	View
reshape, flatten, contiguous	View if possible, copy if the memory layout requires it
Advanced (fancy) indexing x[[0, 2]], boolean masks x[x > 0]	Copy
Arithmetic x + 1, x * y, torch.cat	New tensor
clone()	Copy (and stays in the autograd graph)

A tensor is contiguous when its elements sit in memory in row-major order with no gaps. A transpose is not contiguous. The method view requires a compatible layout and raises an error otherwise; reshape quietly copies when needed. Call .contiguous() to force a compact copy. The rule: use reshape unless you specifically want an error when a copy would be needed.

In-place operations end in an underscore: x.add_(1), x.zero_(), x.clamp_(0, 1), as do indexed assignments like x[0] = 5. They save memory but are risky in two ways. They change every tensor sharing that storage, and they can overwrite values autograd saved for the backward pass, which raises a "modified by an inplace operation" error. Avoid them in model code unless you know why you need one.

Broadcasting

Broadcasting in PyTorch follows exactly NumPy's rules. Align the shapes from the right. Two dimensions are compatible if they're equal or one of them is 1. A size-1 dimension is stretched (virtually, without copying) to match the other, and missing leading dimensions are treated as 1. So a \((64, 10)\) batch of logits plus a \((10,)\) bias gives \((64, 10)\): the bias is added to every row.

The classic bug is a shape that broadcasts when you didn't intend it. If pred has shape \((n, 1)\) and y has shape \((n,)\), then pred - y has shape \((n, n)\): every prediction minus every target. The mean of that is a number, so nothing crashes, and the regression quietly learns garbage. Check shapes whenever you compute a loss by hand, and prefer the built-in losses, which warn about this mismatch.

Devices and GPU basics

Every tensor has a .device. You move tensors with .to(device) (or .cuda() and .cpu()), and you move a whole model with model.to(device), which moves all of its parameters and buffers. All tensors in one operation must be on the same device; PyTorch never moves data implicitly, because a transfer between CPU and GPU memory is slow relative to computation.

The standard device-agnostic pattern is:

device = "cuda" if torch.cuda.is_available() else "mps" if torch.backends.mps.is_available() else "cpu"

Then create or move the model and each batch to device. Code written this way runs unchanged on a laptop and on a GPU machine.

A few facts about GPUs explain most of the performance advice you'll hear:

• GPUs are throughput machines. A GPU runs thousands of simple arithmetic operations in parallel. Large matrix multiplications and convolutions get tens of times faster than on a CPU; tiny operations don't, because launching each one has a fixed overhead.
• GPU calls are asynchronous. Python queues work on the GPU and moves on. Anything that needs a value back on the CPU, such as loss.item(), print(tensor), or .cpu(), forces Python to wait. Calling .item() every step is fine; calling it on every element in a loop is not. To time GPU code correctly, call torch.cuda.synchronize() first.
• Transfers cost. Copy each batch to the GPU once. DataLoader(..., pin_memory=True) with .to(device, non_blocking=True) lets the copy overlap with computation.
• Memory is the binding constraint. GPU memory holds the parameters, the gradients, the optimizer state, and every activation saved for the backward pass. Out-of-memory errors are usually fixed by a smaller batch, mixed precision (next chapter), or a smaller model.

Every example in this level runs on a CPU in minutes. If you want to see the speedup, open the same code in Google Colab, choose Runtime → Change runtime type → GPU, and the device line above will pick up cuda.

Autograd: recording the graph

You built a scalar autograd engine in Level 6: each Value stored its parents and a _backward closure, and backward() walked a topological sort in reverse, applying the chain rule. PyTorch's autograd works the same way at the level of tensors.

A tensor created with requires_grad=True is a leaf of the graph: a variable you want gradients for, typically a parameter. When an operation has at least one input that requires gradients, its output records a grad_fn: a node in the backward graph that knows how to send gradients back to that operation's inputs. Leaves have grad_fn = None; everything computed from them has one. When you call loss.backward(), PyTorch walks this graph from loss back to the leaves and stores \(\partial\,\text{loss} / \partial\,\text{leaf}\) in each leaf's .grad attribute.

The math: vector-Jacobian products. Suppose an operation maps \(\mathbf{x} \in \mathbb{R}^n\) to \(\mathbf{y} = f(\mathbf{x}) \in \mathbb{R}^m\), and its Jacobian is the \(m \times n\) matrix \(J_{ij} = \partial y_i / \partial x_j\). During the backward pass, the node receives the upstream gradient \(\bar{\mathbf{y}} = \partial \mathcal{L} / \partial \mathbf{y}\) (the gradient of the final scalar loss \(\mathcal{L}\) with respect to its output). By the chain rule,

\[ \bar{x}_j = \frac{\partial \mathcal{L}}{\partial x_j} = \sum_{i=1}^{m} \frac{\partial \mathcal{L}}{\partial y_i}\frac{\partial y_i}{\partial x_j}, \qquad \text{that is,} \qquad \bar{\mathbf{x}} = J^\top \bar{\mathbf{y}}. \]

Each grad_fn computes this vector-Jacobian product without ever forming \(J\). For an elementwise ReLU, \(J\) is diagonal, so \(\bar{\mathbf{x}} = \bar{\mathbf{y}} \odot \mathbb{1}[\mathbf{x} > 0]\) (where \(\odot\) is elementwise multiplication). For a matrix product \(Z = XW\), the vector-Jacobian products are \(\bar{X} = \bar{Z}W^\top\) and \(\bar{W} = X^\top\bar{Z}\), exactly the formulas you derived in Forward and backpropagation. Reverse mode starts from the scalar loss, where \(\bar{\mathcal{L}} = 1\).

That's why backward() with no arguments works only on a scalar. For a non-scalar output, you must supply \(\bar{\mathbf{y}}\) yourself as y.backward(gradient=v), which computes \(J^\top\mathbf{v}\).

To save memory, PyTorch frees the graph after backward(). The intermediate values each node saved (the inputs to a multiplication, the mask of a ReLU) are released. Calling backward() a second time on the same graph raises an error, unless the first call passed retain_graph=True. You rarely need that; normally each training step runs a new forward pass, which builds a new graph.

Gradient accumulation

In Level 6, your engine's backward used += to update each node's gradient. That was necessary: if a value feeds two operations, its gradient is the sum of the gradients through both paths (the multivariable chain rule). PyTorch does the same, and it doesn't reset .grad between calls to backward(). So if you call backward() twice, the leaf's .grad holds the sum of both gradients:

\[ \texttt{w.grad} \leftarrow \texttt{w.grad} + \frac{\partial \mathcal{L}_{\text{new}}}{\partial w}. \]

This is why every training step starts with optimizer.zero_grad() (or model.zero_grad()). Modern PyTorch sets the gradients to None rather than to zero tensors, which saves a memory write; the next backward() then creates fresh ones.

Accumulation is also a feature. If a batch of 256 doesn't fit in memory, you can run four batches of 64, call backward() on each loss divided by 4, and step the optimizer once. The summed gradient equals the gradient of the mean loss over all 256 examples. You'll use this in later levels to simulate large batches.

Turning autograd off: no_grad, inference_mode, and detach

Recording a graph costs memory and time. There are three ways to stop it:

• with torch.no_grad(): Inside the block, no operation records a graph, even when its inputs require gradients. Use it for evaluation, and for updating parameters manually (an update like w -= lr * w.grad must not itself become part of the graph).
• with torch.inference_mode(): A stricter, slightly faster version of no_grad for pure inference. Tensors created inside can never be used in autograd later.
• t.detach() Returns a view of t that shares its data but is cut out of the graph: it has requires_grad=False and no grad_fn. Gradients don't flow back through it. Use it when you want a value without its history: to log a loss, to convert to NumPy, or to treat something as a constant target (as in some reinforcement learning and self-supervised methods you'll meet in Level 8).

A related attribute: requires_grad_(False) on a parameter freezes it, so autograd computes no gradient for it. That's the core move in transfer learning.

nn.Module: the building block of models

In Level 6 you wrote a Layer class with forward, backward, and a list of parameters. PyTorch's nn.Module plays the same role, minus the backward, which autograd handles. You subclass it, create layers in __init__, and describe the computation in forward:

class MLP(nn.Module):
    def __init__(self, d_in, d_hidden, d_out):
        super().__init__()
        self.fc1 = nn.Linear(d_in, d_hidden)
        self.fc2 = nn.Linear(d_hidden, d_out)

    def forward(self, x):
        return self.fc2(torch.relu(self.fc1(x)))

Underneath, a few mechanisms do the work:

• Registration. When you assign an nn.Module or an nn.Parameter as an attribute, nn.Module.__setattr__ records it. That's how model.parameters() finds every weight, however deeply nested, and how model.to(device) moves them all. A plain Python list of layers is not registered; use nn.ModuleList or nn.Sequential.
• nn.Parameter is a tensor subclass with requires_grad=True that a module registers as a learnable parameter.
• Buffers are tensors that belong to the module's state but aren't learned, such as batch norm's running mean and variance. You register them with self.register_buffer(name, tensor). They move with .to(device) and are saved in the state dict.
• Calling the module. You call model(x), never model.forward(x) directly. __call__ runs forward plus any registered hooks, which some tools rely on.
• state_dict() returns an ordered dictionary from names like "fc1.weight" to tensors, covering all parameters and buffers. Saving and loading models means saving and loading this dictionary (next chapter).
• Modes. model.train() and model.eval() set a training flag on every submodule. Dropout and batch norm behave differently in the two modes. This has nothing to do with gradients; that's what no_grad is for.

nn.Linear(d_in, d_out) stores its weight as shape (d_out, d_in) and computes \(\mathbf{y} = \mathbf{x}W^\top + \mathbf{b}\). That transposed layout surprises people who learned \(XW\) with \(W\) of shape \((d_{\text{in}}, d_{\text{out}})\), as in Level 6. It also initializes weights from a uniform distribution scaled by \(1/\sqrt{d_{\text{in}}}\) (Kaiming-uniform with a particular gain), a sensible default in the spirit of the initializations you derived in Training deep networks. For simple stacks, nn.Sequential(nn.Linear(64, 32), nn.ReLU(), nn.Linear(32, 10)) saves writing a class.

The functional API, torch.nn.functional (imported as F), provides stateless versions of the same operations: F.relu, F.cross_entropy, F.conv2d, F.dropout. Use modules for anything with parameters or state, and functions for stateless operations inside forward, as you prefer.

Losses and optimizers, briefly

The losses in nn and F are the ones you implemented. The one to know now is F.cross_entropy(logits, targets). It takes raw logits (unnormalized scores, shape \((n, C)\) for \(C\) classes) and integer class labels (shape \((n,)\), dtype int64), and computes the log-softmax and the negative log-likelihood in one numerically stable step:

\[ \mathcal{L} = -\frac{1}{n}\sum_{i=1}^{n} \log \frac{e^{z_{i, y_i}}}{\sum_{c=1}^{C} e^{z_{i,c}}}, \]

where \(z_{i,c}\) is the logit of example \(i\) for class \(c\) and \(y_i\) is its true class. Don't apply softmax before it; it applies its own. Its gradient with respect to the logits is \((\text{softmax}(\mathbf{z}_i) - \mathbf{e}_{y_i}) / n\), where \(\mathbf{e}_{y_i}\) is the one-hot vector, the result you derived in Level 6.

An optimizer from torch.optim holds a reference to the parameters and implements the update rule: torch.optim.SGD(model.parameters(), lr=0.1, momentum=0.9) or torch.optim.AdamW(model.parameters(), lr=1e-3, weight_decay=0.01). Its step() reads each parameter's .grad and updates the parameter in place, under no_grad, exactly like the optimizer classes you wrote. Its zero_grad() clears the gradients. The next chapter builds the full training loop around these calls.

Dataset and DataLoader

PyTorch separates what the data is from how it's served.

A Dataset (map-style) is any object with __len__ and __getitem__(i), returning one example, usually an (input, label) pair. TensorDataset(X, y) wraps tensors you already have in memory. For images on disk, __getitem__ reads and decodes file i and applies any transforms. Datasets are lazy: nothing is loaded until it's asked for.

A DataLoader wraps a dataset and produces batches. It:

• draws indices, in order or shuffled (shuffle=True reshuffles at the start of every epoch);
• fetches each example with dataset[i];
• combines examples into a batch with a collate function (the default stacks tensors along a new first dimension, so 64 examples of shape \((1, 28, 28)\) become one tensor of shape \((64, 1, 28, 28)\));
• optionally loads in parallel worker processes (num_workers > 0) and pins memory for fast GPU transfer.

Other options you'll use: batch_size, drop_last=True (discard a final incomplete batch, useful when batch norm sees a batch of 1), and generator=torch.Generator().manual_seed(0) to make shuffling reproducible. The default num_workers=0 loads in the main process. That's simplest and fine for in-memory data like this level's; for decoding images from disk, a few workers keep a GPU fed.

Moving between NumPy and PyTorch

There are two kinds of conversion, and the difference matters:

Call	Shares memory?	Notes
torch.from_numpy(a)	Yes	Keeps NumPy's dtype, so float64 arrays become float64 tensors
torch.as_tensor(a)	Yes, when possible	Copies if you request another dtype or device
torch.tensor(a)	No, always copies	Safe, costs a copy
t.numpy()	Yes	CPU tensors without gradients only
t.detach().cpu().numpy()	Shares if already on the CPU	The universal recipe

Shared memory means a change to the array shows up in the tensor. That's efficient, and occasionally surprising. Two pitfalls come up constantly. First, torch.from_numpy on data you prepared with NumPy or pandas gives float64, and a float32 model then fails with a dtype mismatch: add .float(). Second, .numpy() refuses tensors that require gradients (convert with .detach() first) and tensors on a GPU (move with .cpu() first).

In practice

Tensors, dtypes, and memory

Start with dtypes, promotion, and the view-versus-copy rules. Watch which tensors change when you modify another one.

import numpy as np
import torch

torch.set_num_threads(4)
torch.manual_seed(0)

a = torch.tensor([1, 2, 3])
b = torch.tensor([0.5, 1.5, 2.5])
print(a.dtype, b.dtype, (a + b).dtype, (b * 2.5).dtype)
print(torch.zeros(2).dtype, np.zeros(2).dtype)
print((b.double() + b).dtype, (a / 2).dtype, (a // 2).dtype)

x = torch.arange(12).reshape(3, 4)
print("shape", tuple(x.shape), "stride", x.stride(), "contiguous", x.is_contiguous())
xt = x.T
print("x.T stride", xt.stride(), "contiguous", xt.is_contiguous(),
      "same storage", xt.untyped_storage().data_ptr() == x.untyped_storage().data_ptr())

col = x[:, 1]          # basic slice: a view
col[0] = 100           # writes into x
fancy = x[[0, 2]]      # fancy indexing: a copy
fancy[0, 0] = -1       # does not touch x
print(x)

torch.int64 torch.float32 torch.float32 torch.float32
torch.float32 float64
torch.float64 torch.float32 torch.int64
shape (3, 4) stride (4, 1) contiguous True
x.T stride (1, 4) contiguous False same storage True
tensor([[  0, 100,   2,   3],
        [  4,   5,   6,   7],
        [  8,   9,  10,  11]])

The integer tensor a promoted to float32 when added to b, and true division / always gives a float. The transpose is the same memory with swapped strides, which is why it's not contiguous. Now see what that means for view and reshape:

try:
    xt.view(12)
except RuntimeError as e:
    print("view failed:", str(e)[:70], "...")
r = xt.reshape(12)                                   # silently copies
print("reshape shares memory:", r.untyped_storage().data_ptr() == x.untyped_storage().data_ptr())
print("contiguous copy stride:", xt.contiguous().stride())

view failed: view size is not compatible with input tensor's size and stride (at le ...
reshape shares memory: False
contiguous copy stride: (3, 1)

Broadcasting, and the \((n, 1)\) versus \((n,)\) trap

logits = torch.randn(4, 3)
bias = torch.tensor([10.0, 20.0, 30.0])
print((logits + bias).shape)                         # (4, 3) + (3,) -> (4, 3)

pred = torch.randn(5, 1)                             # model output with a trailing 1
y = torch.randn(5)                                   # targets without it
print("pred - y has shape", tuple((pred - y).shape))  # (5, 5): every pred minus every target!
print("silently wrong MSE:", ((pred - y) ** 2).mean().item())
print("correct MSE:       ", ((pred.squeeze(1) - y) ** 2).mean().item())

torch.Size([4, 3])
pred - y has shape (5, 5)
silently wrong MSE: 1.7594152688980103
correct MSE:        1.9655520915985107

Common mistake: a loss that broadcasts

A regression model's output usually has shape \((n, 1)\), and targets loaded from a DataFrame column have shape \((n,)\). Subtracting them gives an \((n, n)\) matrix and a loss that is a perfectly ordinary-looking number, so nothing crashes. nn.MSELoss warns about mismatched shapes; hand-written losses don't. Assert shapes before computing a loss.

Devices

device = "cuda" if torch.cuda.is_available() else "mps" if torch.backends.mps.is_available() else "cpu"
print("using", device)
t = torch.ones(2, 2, device=device)
print(t.device, t.to("cpu").device)
try:
    torch.ones(2, device="meta") + torch.ones(2)    # "meta" is a shape-only device, handy for demos
except RuntimeError as e:
    print("RuntimeError:", str(e).splitlines()[0][:80])

using cpu
cpu cpu
RuntimeError: Tensor on device cpu is not on the expected device meta!

On a GPU machine, the first line says cuda and the mismatch error says cuda:0 and cpu. The fix is always to move both operands to the same device, usually by moving the batch to the model's device.

Autograd: the graph, step by step

Here is a tiny graph, \(\mathcal{L} = \sum_i (w x_i + b - y_i)^2\), with its grad_fn nodes:

w = torch.tensor(2.0, requires_grad=True)
b = torch.tensor(0.5, requires_grad=True)
xs = torch.tensor([1.0, 2.0, 3.0])
ys = torch.tensor([3.0, 5.0, 7.0])

pred = w * xs + b
loss = ((pred - ys) ** 2).sum()
print("leaf:", w.is_leaf, w.grad_fn, "| pred.grad_fn:", type(pred.grad_fn).__name__,
      "| loss.grad_fn:", type(loss.grad_fn).__name__)
print("loss's inputs:", [type(f[0]).__name__ for f in loss.grad_fn.next_functions])

loss.backward()
# by hand: dL/dw = sum 2 (w x + b - y) x, dL/db = sum 2 (w x + b - y)
r = (w * xs + b - ys).detach()
print("autograd:", w.grad.item(), b.grad.item(), "| by hand:", (2 * r * xs).sum().item(), (2 * r).sum().item())

leaf: True None | pred.grad_fn: AddBackward0 | loss.grad_fn: SumBackward0
loss's inputs: ['PowBackward0']
autograd: -6.0 -3.0 | by hand: -6.0 -3.0

Following next_functions from loss walks the backward graph: SumBackward0 → PowBackward0 → SubBackward0 → AddBackward0 → MulBackward0 → the leaf w (an AccumulateGrad node, which adds into w.grad). It's the same structure as your Level 6 engine's graph of Value nodes.

Gradients accumulate

Run the same backward pass again without zeroing, and the gradient doubles. Calling backward() on the old graph fails, because the graph was freed:

try:
    loss.backward()
except RuntimeError as e:
    print("second backward on the same graph:", str(e)[:60], "...")

loss = (((w * xs + b) - ys) ** 2).sum()      # a new forward pass builds a new graph
loss.backward()
print("w.grad after two backward passes:", w.grad.item())   # -6 + -6

w.grad = None; b.grad = None                 # what optimizer.zero_grad() does
loss = (((w * xs + b) - ys) ** 2).sum()
loss.backward()
print("w.grad after zeroing:", w.grad.item())

second backward on the same graph: Trying to backward through the graph a second time (or direc ...
w.grad after two backward passes: -12.0
w.grad after zeroing: -6.0

That doubled gradient is Wei's bug from the opening story. Now the useful side of accumulation: splitting a batch into micro-batches, scaling each loss, and summing gradients gives exactly the full-batch gradient.

torch.manual_seed(0)
Xa = torch.randn(256, 5)
Ya = torch.randn(256)
Wa = torch.randn(5, requires_grad=True)

full = ((Xa @ Wa - Ya) ** 2).mean()
g_full = torch.autograd.grad(full, Wa)[0]        # returns the gradient without touching W.grad

Wa.grad = None
for chunk in range(4):                          # 4 micro-batches of 64
    xb, yb = Xa[chunk * 64:(chunk + 1) * 64], Ya[chunk * 64:(chunk + 1) * 64]
    (((xb @ Wa - yb) ** 2).mean() / 4).backward()
print("max difference:", (Wa.grad - g_full).abs().max().item())

max difference: 5.960464477539062e-07

The difference is float32 rounding. Dividing each micro-batch loss by the number of micro-batches is the step people forget; without it, the gradient is four times too large.

no_grad and detach

w = torch.tensor(2.0, requires_grad=True)
with torch.no_grad():
    y1 = w * 3
y2 = (w * 3).detach()
y3 = w * 3
print("no_grad:", y1.requires_grad, y1.grad_fn, "| detach:", y2.requires_grad,
      "| normal:", y3.requires_grad, type(y3.grad_fn).__name__)

# A manual SGD step must not be recorded in the graph:
loss = (w - 5) ** 2
loss.backward()
with torch.no_grad():
    w -= 0.1 * w.grad
print("after one step, w =", w.item(), "| still a leaf:", w.is_leaf)

# detach() shares memory with the original
d = w.detach()
d += 1
print("w after modifying its detached view:", w.item())

no_grad: False None | detach: False | normal: True MulBackward0
after one step, w = 2.5999999046325684 | still a leaf: True
w after modifying its detached view: 3.5999999046325684

detach() cuts the graph, not the memory. If you need an independent copy, use t.detach().clone().

A hand-derived gradient versus autograd

This is the check that ties Level 6 to PyTorch. Take a two-layer network with a ReLU hidden layer and softmax cross-entropy, using the notation from Level 6: inputs \(X \in \mathbb{R}^{n \times d}\), one-hot targets \(Y \in \mathbb{R}^{n \times C}\), and

\[ A = XW_1 + \mathbf{b}_1, \quad H = \max(0, A), \quad Z = HW_2 + \mathbf{b}_2, \quad \mathcal{L} = -\frac{1}{n}\sum_{i=1}^{n}\sum_{c=1}^{C} Y_{ic}\log \operatorname{softmax}(Z_i)_c. \]

Backpropagation gives, in order,

\[ \begin{aligned} \bar{Z} &= \tfrac{1}{n}\left(\operatorname{softmax}(Z) - Y\right), & \bar{W}_2 &= H^\top\bar{Z}, & \bar{\mathbf{b}}_2 &= \textstyle\sum_i \bar{Z}_i, \\ \bar{H} &= \bar{Z}W_2^\top, & \bar{A} &= \bar{H} \odot \mathbb{1}[A > 0], & \bar{W}_1 &= X^\top\bar{A}, \quad \bar{\mathbf{b}}_1 = \textstyle\sum_i \bar{A}_i. \end{aligned} \]

Code both and compare, in float64 so that rounding doesn't hide a real mismatch:

import torch.nn.functional as F

torch.manual_seed(0)
n, d, h, C = 32, 10, 16, 4
X = torch.randn(n, d, dtype=torch.float64)
y = torch.randint(0, C, (n,))
W1 = (torch.randn(d, h, dtype=torch.float64) * 0.3).requires_grad_()
b1 = torch.zeros(h, dtype=torch.float64, requires_grad=True)
W2 = (torch.randn(h, C, dtype=torch.float64) * 0.3).requires_grad_()
b2 = torch.zeros(C, dtype=torch.float64, requires_grad=True)

# Autograd
A = X @ W1 + b1
H = A.clamp(min=0)
Z = H @ W2 + b2
loss = F.cross_entropy(Z, y)
loss.backward()

# By hand, from the equations above
with torch.no_grad():
    Y = F.one_hot(y, C).double()
    dZ = (torch.softmax(Z, dim=1) - Y) / n
    dW2, db2 = H.T @ dZ, dZ.sum(0)
    dA = (dZ @ W2.T) * (A > 0)
    dW1, db1 = X.T @ dA, dA.sum(0)

for name, mine, auto in [("W1", dW1, W1.grad), ("b1", db1, b1.grad), ("W2", dW2, W2.grad), ("b2", db2, b2.grad)]:
    print(f"{name}: max |hand - autograd| = {(mine - auto).abs().max().item():.2e}")

# PyTorch's own finite-difference checker agrees too
print("gradcheck:", torch.autograd.gradcheck(lambda W: F.cross_entropy((X @ W + b1).clamp(min=0) @ W2 + b2, y),
                                             (W1.detach().clone().requires_grad_(),)))

W1: max |hand - autograd| = 2.08e-17
b1: max |hand - autograd| = 1.39e-17
W2: max |hand - autograd| = 1.39e-17
b2: max |hand - autograd| = 2.78e-17
gradcheck: True

The hand-derived gradients agree with autograd to about \(10^{-17}\), the limit of float64 precision. Autograd isn't magic: it's the chain rule you already know, applied mechanically. torch.autograd.gradcheck compares autograd's gradients against centered finite differences, the gradient check from Level 6, and is the tool to reach for when you write a custom operation.

nn.Module: parameters, buffers, and state

import torch.nn as nn

class MLP(nn.Module):
    def __init__(self, d_in, d_hidden, d_out, p_drop=0.2):
        super().__init__()
        self.fc1 = nn.Linear(d_in, d_hidden)
        self.bn = nn.BatchNorm1d(d_hidden)
        self.drop = nn.Dropout(p_drop)
        self.fc2 = nn.Linear(d_hidden, d_out)

    def forward(self, x):
        return self.fc2(self.drop(torch.relu(self.bn(self.fc1(x)))))

torch.manual_seed(0)
model = MLP(64, 32, 10)
for name, p in model.named_parameters():
    print(f"{name:12s} {str(tuple(p.shape)):10s} requires_grad={p.requires_grad}")
print("buffers:", [name for name, _ in model.named_buffers()])
print("state_dict keys:", len(model.state_dict()), "| trainable parameters:",
      sum(p.numel() for p in model.parameters()))
print("fc1.weight is", tuple(model.fc1.weight.shape), "-> y = x @ W.T + b")

fc1.weight   (32, 64)   requires_grad=True
fc1.bias     (32,)      requires_grad=True
bn.weight    (32,)      requires_grad=True
bn.bias      (32,)      requires_grad=True
fc2.weight   (10, 32)   requires_grad=True
fc2.bias     (10,)      requires_grad=True
buffers: ['bn.running_mean', 'bn.running_var', 'bn.num_batches_tracked']
state_dict keys: 9 | trainable parameters: 2474
fc1.weight is (32, 64) -> y = x @ W.T + b

The count is \(64 \cdot 32 + 32\) for fc1, \(32 + 32\) for batch norm's scale and shift, and \(32 \cdot 10 + 10\) for fc2: 2,474. The state dict has 9 entries: 6 parameters and 3 buffers. Now see the training flag change the output, and see why a plain list hides parameters:

x = torch.randn(8, 64)
model.train()
out1, out2 = model(x), model(x)
print("train mode, same input twice -> equal?", torch.allclose(out1, out2))   # dropout is random
model.eval()
with torch.no_grad():
    print("eval mode,  same input twice -> equal?", torch.allclose(model(x), model(x)))

class Broken(nn.Module):
    def __init__(self):
        super().__init__()
        self.layers = [nn.Linear(4, 4), nn.Linear(4, 4)]         # plain list: NOT registered

class Fixed(nn.Module):
    def __init__(self):
        super().__init__()
        self.layers = nn.ModuleList([nn.Linear(4, 4), nn.Linear(4, 4)])

print("Broken has", len(list(Broken().parameters())), "parameter tensors; Fixed has", len(list(Fixed().parameters())))

train mode, same input twice -> equal? False
eval mode,  same input twice -> equal? True
Broken has 0 parameter tensors; Fixed has 4

Common mistake: layers in a plain list

Broken's optimizer would receive zero parameters, so training would change nothing, and model.to("cuda") would leave the layers on the CPU. Use nn.ModuleList (or nn.ModuleDict, or nn.Sequential) for any collection of submodules.

Dataset, DataLoader, and NumPy interop

The digits dataset from scikit-learn (\(8 \times 8\) images, 1,797 of them) arrives as NumPy float64 arrays. Here is a custom Dataset around it, and the NumPy-sharing behavior to watch for:

from sklearn.datasets import load_digits
from sklearn.model_selection import train_test_split
from torch.utils.data import DataLoader, Dataset, TensorDataset

digits = load_digits()
X_np, y_np = digits.data, digits.target
print(X_np.dtype, X_np.shape, y_np.dtype)

shared = torch.from_numpy(X_np)          # shares memory, stays float64
copied = torch.tensor(X_np)              # copies
X_np[0, 0] = 99.0
print("from_numpy sees the change:", shared[0, 0].item(), "| tensor() copy:", copied[0, 0].item())
X_np[0, 0] = 0.0                         # undo

class DigitsDataset(Dataset):
    def __init__(self, X, y):
        self.X = torch.as_tensor(X, dtype=torch.float32) / 16.0   # pixels are 0..16
        self.y = torch.as_tensor(y, dtype=torch.long)

    def __len__(self):
        return len(self.y)

    def __getitem__(self, i):
        return self.X[i], self.y[i]

X_tr, X_te, y_tr, y_te = train_test_split(X_np, y_np, test_size=0.25, random_state=0, stratify=y_np)
train_ds, test_ds = DigitsDataset(X_tr, y_tr), DigitsDataset(X_te, y_te)
train_dl = DataLoader(train_ds, batch_size=64, shuffle=True, generator=torch.Generator().manual_seed(0))
test_dl = DataLoader(test_ds, batch_size=256)

xb, yb = next(iter(train_dl))
print("one example:", train_ds[0][0].shape, train_ds[0][1].dtype, "| one batch:", tuple(xb.shape), tuple(yb.shape))
print("batches per epoch:", len(train_dl), "| last batch size:", len(train_ds) % 64)

float64 (1797, 64) int64
from_numpy sees the change: 99.0 | tensor() copy: 0.0
one example: torch.Size([64]) torch.int64 | one batch: (64, 64) (64,)
batches per epoch: 22 | last batch size: 3

The DataLoader turned 64 examples of shape \((64,)\) into one tensor of shape \((64, 64)\) with the default collate function. (TensorDataset(X, y) would do the same job as DigitsDataset in one line; the class shows what any dataset must provide.)

Putting it together: training the MLP

Here is everything in one loop, a preview of the next chapter. It trains the MLP from above on digits with AdamW and records the loss of each batch.

torch.manual_seed(0)
model = MLP(64, 64, 10)
opt = torch.optim.AdamW(model.parameters(), lr=3e-3)

def accuracy(model, loader):
    model.eval()
    correct = 0
    with torch.no_grad():
        for xb, yb in loader:
            correct += (model(xb).argmax(1) == yb).sum().item()
    return correct / len(loader.dataset)

batch_losses, test_accs = [], []
for epoch in range(15):
    model.train()
    for xb, yb in train_dl:
        loss = F.cross_entropy(model(xb), yb)
        opt.zero_grad()
        loss.backward()
        opt.step()
        batch_losses.append(loss.item())
    test_accs.append(accuracy(model, test_dl))
print(f"mean loss over the last epoch {np.mean(batch_losses[-len(train_dl):]):.4f}; test accuracy by epoch:",
      " ".join(f"{a:.3f}" for a in test_accs[::2]))

mean loss over the last epoch 0.1163; test accuracy by epoch: 0.913 0.949 0.967 0.969 0.962 0.976 0.964 0.971

import matplotlib.pyplot as plt

fig, axes = plt.subplots(1, 2, figsize=(10, 3.5))
axes[0].plot(batch_losses, lw=0.8, alpha=0.5, label="per batch")
smooth = np.convolve(batch_losses, np.ones(10) / 10, mode="valid")
axes[0].plot(np.arange(9, len(batch_losses)), smooth, lw=2, label="10-batch moving average")
axes[0].set(xlabel="optimizer step", ylabel="cross-entropy", yscale="log", title="Training loss")
axes[0].legend()
axes[1].plot(range(1, 16), test_accs, "o-")
axes[1].set(xlabel="epoch", ylabel="accuracy", title="Test accuracy", ylim=(0.9, 1.0))
for ax in axes:
    ax.grid(alpha=0.3)
plt.tight_layout()
plt.show()

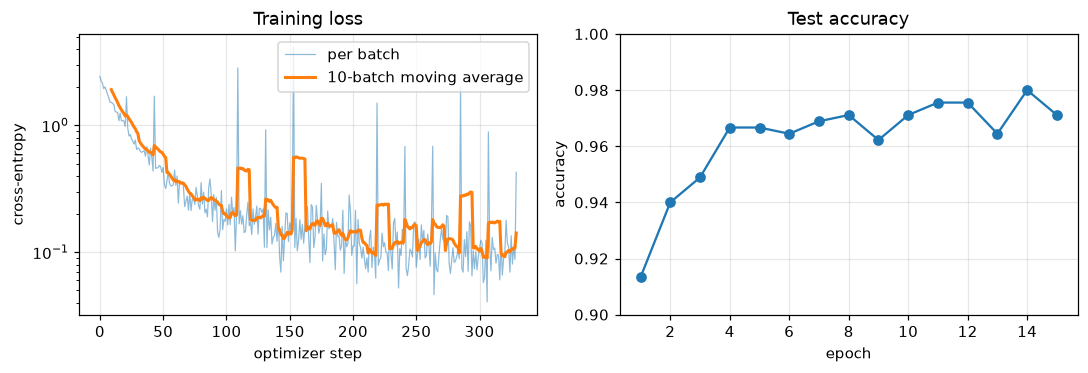

The MLP on digits. Each batch's loss is noisy, because each batch is a different sample; the moving average shows the trend.

Compare this with your Level 6 NumPy network. The model definition is shorter, there's no backward code, and the optimizer is one line. Every concept underneath is one you've built yourself. (A test set used for every epoch's report is fine for a demo, but it isn't an honest final estimate; the next chapter adds a proper validation split.)

Common mistake: .numpy() on a tensor that needs gradients

model(x).numpy() raises "Can't call numpy() on Tensor that requires grad". Use model(x).detach().cpu().numpy(), or compute the predictions inside torch.no_grad(). Don't "fix" it by setting requires_grad=False on the parameters.

Exercises

Exercise 1: Views and copies (easy)

Predict, without running it, what this prints. Then run it and explain each line.

x = torch.zeros(2, 3)
a = x[0]
b = x[:, [0, 2]]
c = x.reshape(3, 2)
a += 1
b += 10
c[2, 1] = 5
print(x)

Solution

x = torch.zeros(2, 3)
a = x[0]
b = x[:, [0, 2]]
c = x.reshape(3, 2)
a += 1
b += 10
c[2, 1] = 5
print(x)

tensor([[1., 1., 1.],
        [0., 0., 5.]])

a = x[0] is a basic slice, so a view: a += 1 is in place and sets the first row to 1. b uses a list index (fancy indexing), so it's a copy, and adding 10 to it leaves x alone. x is contiguous, so reshape returns a view; element [2, 1] of the \(3 \times 2\) view is flat position \(2 \cdot 2 + 1 = 5\), which is x[1, 2].

Exercise 2: The gradient of a softmax by hand (medium)

For a single example with logits \(\mathbf{z} \in \mathbb{R}^C\) and true class \(y\), the loss is \(\mathcal{L} = -\log \operatorname{softmax}(\mathbf{z})_y\). Derive \(\partial\mathcal{L}/\partial z_c\). Then verify your formula against F.cross_entropy and autograd for \(C = 5\) random logits.

Solution

Write \(p_c = e^{z_c} / \sum_k e^{z_k}\). Then \(\mathcal{L} = -z_y + \log\sum_k e^{z_k}\). Differentiating, \(\partial\mathcal{L}/\partial z_c = -\mathbb{1}[c = y] + e^{z_c}/\sum_k e^{z_k} = p_c - \mathbb{1}[c = y]\). In vector form, \(\nabla_{\mathbf{z}}\mathcal{L} = \mathbf{p} - \mathbf{e}_y\).

torch.manual_seed(1)
z = torch.randn(5, dtype=torch.float64, requires_grad=True)
target = 3
F.cross_entropy(z.unsqueeze(0), torch.tensor([target])).backward()
by_hand = torch.softmax(z.detach(), 0) - F.one_hot(torch.tensor(target), 5)
print(z.grad)
print((z.grad - by_hand).abs().max().item())

tensor([ 0.2847,  0.1919,  0.1563, -0.7265,  0.0935], dtype=torch.float64)
2.7755575615628914e-17

The gradient entries sum to zero, as they must: \(\sum_c p_c - 1 = 0\). Increasing all logits by the same amount doesn't change the softmax.

Exercise 3: Gradient accumulation without scaling (medium)

In the micro-batch example above, remove the division by 4. By what factor is the accumulated gradient off? If you trained with AdamW instead of SGD, would the missing division matter as much? Reason first, then test the first part.

Solution

Each micro-batch mean loss has a gradient that is, on average, the size of the full-batch gradient, so summing four of them gives four times the full-batch gradient.

Wa.grad = None
for chunk in range(4):
    xb, yb = Xa[chunk * 64:(chunk + 1) * 64], Ya[chunk * 64:(chunk + 1) * 64]
    ((xb @ Wa - yb) ** 2).mean().backward()
print((Wa.grad / g_full).mean().item())

3.999999523162842

With SGD, the step is \(\eta\,\mathbf{g}\), so the effective learning rate is four times too big. Adam divides the first-moment estimate by the square root of the second-moment estimate, so a constant scale on every gradient cancels almost exactly (except for the small \(\epsilon\) in the denominator). The bug is mostly harmless with Adam and serious with SGD. Write the scaling anyway: correct code shouldn't depend on which optimizer happens to forgive it.

Exercise 4: A custom Dataset with a transform (medium)

Write a NoisyDigits dataset that returns each digit image as a \((1, 8, 8)\) float tensor in \([0, 1]\) with Gaussian noise of standard deviation sigma added, freshly sampled on every access. Check that the same index returns different tensors on two accesses, and that a DataLoader with batch_size=32 yields batches of shape \((32, 1, 8, 8)\).

Solution

class NoisyDigits(Dataset):
    def __init__(self, X, y, sigma=0.1):
        self.X = torch.as_tensor(X, dtype=torch.float32).reshape(-1, 1, 8, 8) / 16.0
        self.y = torch.as_tensor(y, dtype=torch.long)
        self.sigma = sigma

    def __len__(self):
        return len(self.y)

    def __getitem__(self, i):
        x = self.X[i] + self.sigma * torch.randn_like(self.X[i])
        return x.clamp(0, 1), self.y[i]

torch.manual_seed(0)
nd = NoisyDigits(X_tr, y_tr)
print(torch.equal(nd[0][0], nd[0][0]))
xb, yb = next(iter(DataLoader(nd, batch_size=32, shuffle=True)))
print(tuple(xb.shape), tuple(yb.shape))

False
(32, 1, 8, 8) (32,)

The noise is drawn in __getitem__, so every epoch sees a new version of each image. This is exactly how data augmentation works in the CNN chapter.

Exercise 5: Where did my gradient go? (hard)

Each snippet below leaves w.grad as None or wrong. Explain why, and fix it.

1. w = torch.randn(3, requires_grad=True).to("cuda"), then a loss computed from w and loss.backward().
2. w = torch.randn(3, requires_grad=True); w2 = w * 2; loss = (w2 ** 2).sum(); loss.backward(); print(w2.grad).
3. A loss computed as torch.tensor(model(x).argmax(1) == y, dtype=torch.float32).mean().

Solution

1. .to("cuda") is an operation, so the result is a non-leaf tensor computed from the CPU leaf. The gradient lands in the CPU leaf, which you threw away, and the tensor you kept isn't a leaf, so its .grad isn't populated. Fix: w = torch.randn(3, device="cuda", requires_grad=True), or create it on the CPU, move it, then call .requires_grad_(). (On a CPU-only machine, .double() or any other operation shows the same effect.)
2. w2 is not a leaf. Autograd only keeps .grad for leaves, to save memory; PyTorch warns when you access it. w.grad is populated correctly. If you need an intermediate gradient, call w2.retain_grad() before backward().
3. argmax and == aren't differentiable: their outputs are integers or booleans with no grad_fn, so the loss has no path back to the parameters (and backward() raises an error because the loss doesn't require gradients). Accuracy is a metric, not a training loss; train on cross-entropy, which is a differentiable surrogate.

Check yourself

1. What are the three things a PyTorch tensor adds to a NumPy array?

   Answer

   A device (CPU or an accelerator), automatic differentiation (recording operations to compute gradients), and a library of layers, losses, optimizers, and data utilities built around both.

2. Why does x.T.view(-1) fail while x.T.reshape(-1) works?

   Answer

   A transpose is a view with swapped strides, so its elements aren't in row-major order in memory. view can only reinterpret existing memory and raises an error when the layout doesn't allow it. reshape returns a view when possible and otherwise copies.

3. What does loss.backward() compute for a leaf w, and where does it put it?

   Answer

   It computes \(\partial\,\text{loss}/\partial w\) by walking the backward graph from the loss to the leaves, applying a vector-Jacobian product at each node. It adds the result to w.grad.

4. Why does PyTorch accumulate gradients instead of overwriting them, and what do you do about it in a training loop?

   Answer

   Accumulation is how the chain rule sums contributions when a tensor is used in several places, and it lets you build a large-batch gradient from several micro-batches. In a training loop you clear gradients each step with optimizer.zero_grad().

5. What is the difference between torch.no_grad() and model.eval()?

   Answer

   no_grad stops autograd from recording operations, which saves memory and time. eval() switches layers like dropout and batch norm to inference behavior. They're independent. For evaluation you want both.

6. Why must you write nn.ModuleList instead of a Python list of layers?

   Answer

   nn.Module registers submodules only when they're assigned as module attributes or held in module containers. Layers in a plain list aren't registered, so parameters(), to(device), state_dict(), and train()/eval() all miss them.

7. You call torch.from_numpy(arr) on a pandas-derived array and pass it to a model. What error do you expect, and why?

   Answer

   A dtype mismatch (for example "mat1 and mat2 must have the same dtype"). NumPy's default float is float64, from_numpy keeps it, and the model's parameters are float32. Add .float().

8. What does t.detach() share with t, and what does it not?

   Answer

   It shares the underlying memory (so in-place changes show up in both), but not the autograd history: the detached tensor has no grad_fn and doesn't require gradients, so gradients don't flow through it.

Key takeaways

• A tensor is an ndarray plus a device and autograd. The default float is float32, and class labels are int64.
• Slicing, transposing, and view return views that share memory; fancy indexing and arithmetic make new tensors. reshape copies only when it must.
• Autograd records a backward graph as code runs and computes vector-Jacobian products from the loss back to the leaves. It's the chain rule, and you verified it matches hand-derived gradients to float64 precision.
• backward() adds to .grad, so every training step must zero the gradients; scaled accumulation over micro-batches reproduces the full-batch gradient.
• no_grad and detach stop gradient tracking; train() and eval() change layer behavior. They're different switches.
• nn.Module registers parameters, submodules, and buffers automatically; Dataset defines examples and DataLoader batches, shuffles, and collates them.
• from_numpy and .numpy() share memory; detach().cpu().numpy() is the universal way back to NumPy.

Further reading

• The official PyTorch tutorials, especially "Learn the Basics" and "A Gentle Introduction to torch.autograd".
• The PyTorch documentation: the pages on "Tensor Views", "Autograd mechanics", and "Broadcasting semantics" are short and precise.
• Paszke et al., "PyTorch: An Imperative Style, High-Performance Deep Learning Library" (NeurIPS 2019), the design paper.
• Edward Z. Yang, "PyTorch internals" (blog post, 2019), on strides, storage, and dispatch.

Next

You can now build models and feed them data. Next, wrap them in a training loop you can trust, with validation, checkpointing, and debugging tools: The training loop.
